TL;DR: Array-based queues are often dismissed due to O(n) shifting costs, but the ring buffer circumvents this by using wrapping head and tail pointers. This design provides O(1) access and superior cache locality, making it the industry standard for CPU scheduling, video buffering, and high-performance data streaming.
I’ve seen plenty of developers dismiss array-based queues as a rookie mistake, but the hardware you're using right now relies on them. On paper, it looks inefficient to use a fixed-size array for a queue because removing an element from the front forces an O(n) operation to move every other item. In practice, when implemented as a ring buffer, this structure becomes one of the most efficient tools for low-level systems.
Why is a naive array-based queue inefficient for systems programming?
Removing the front element of a standard array requires an O(n) memory shift for all remaining items. This creates a processing tax that scales linearly with the queue size, making it unusable for high-frequency operations where low latency is required.
I consider arrays to be contiguous blocks of memory. If I remove the item at index 0, the CPU must move every other item left by one slot. If a system is handling thousands of packets per second, that shifting cost eventually reaches a bottleneck where the processor spends more time moving data than performing actual logic. To maintain throughput in a kernel or a high-speed microservice, O(1) removals are a requirement.
How does a ring buffer eliminate the shifting penalty?
A ring buffer uses head and tail indices to track the queue's boundaries, leaving the actual data static in memory. By incrementing a pointer instead of moving elements, the removal process becomes a constant-time O(1) operation.
I prefer to leave the data exactly where it is and simply update the definition of where the "front" is. When an item is removed, the head index is incremented. The space where the old item sat is then treated as empty for the system to reuse later. By moving the pointers instead of the data, the system performs simple pointer arithmetic, which is significantly cheaper for the CPU than moving blocks of memory.
How does the pointer-wrapping logic manage fixed-size memory?

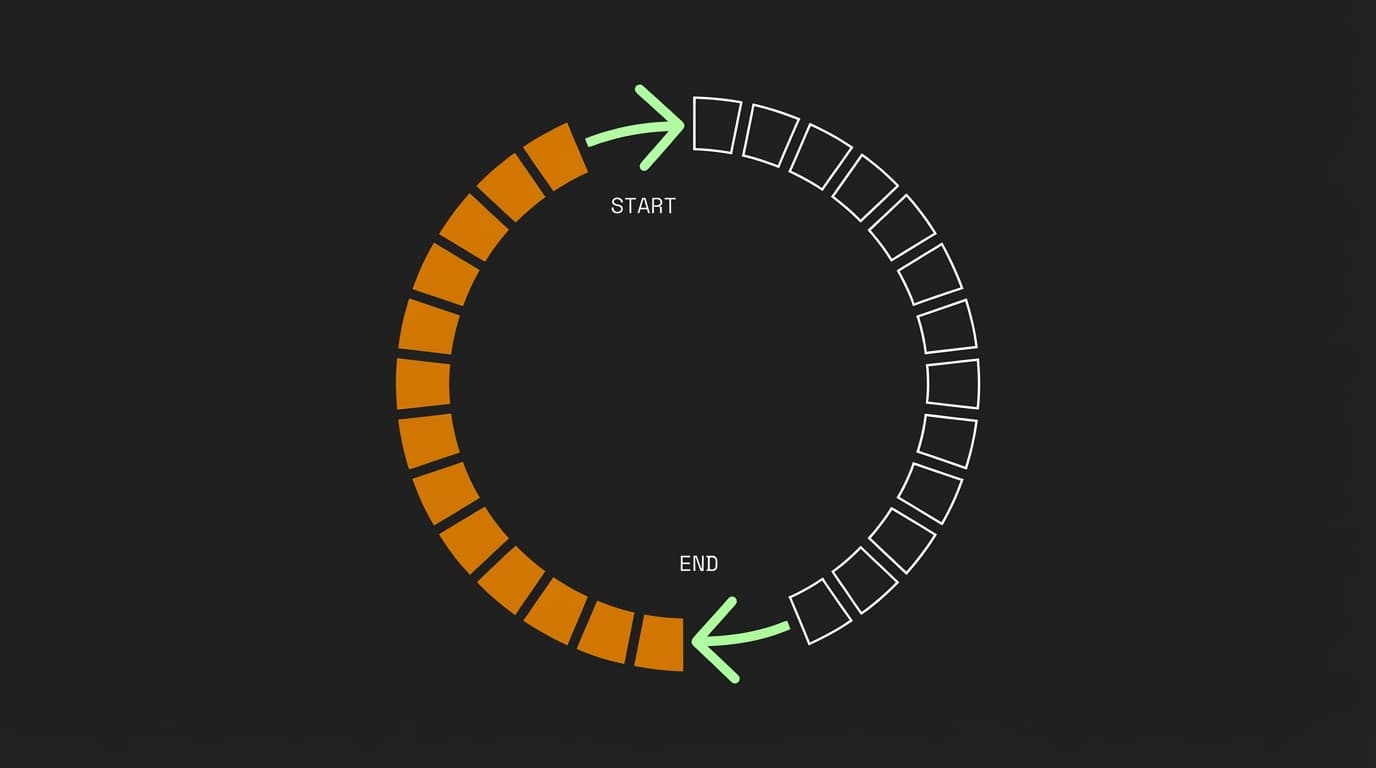

When a pointer reaches the end of the array, the ring buffer logic wraps it back to index zero, provided there is empty space at the front. This turns a linear array into a logical circle, allowing continuous reuse of the same memory block without reallocations.
This wrapping is the core mechanism of the structure. As data is added, the tail pointer eventually hits the end of the array. Instead of reallocating memory—which introduces latency spikes—the pointer is directed back to the start. As long as the tail doesn't catch up to the head, the queue can cycle through that fixed block of memory indefinitely. I find this deterministic behavior necessary for systems that cannot tolerate garbage collection or heap fragmentation.
Why are ring buffers superior to linked lists for CPU tasks?
Ring buffers provide a contiguous memory layout, which maximizes CPU L1 and L2 cache hits. Unlike linked lists, which rely on pointer chasing across random memory addresses, a ring buffer keeps data in a predictable block that the CPU can pre-fetch effectively.
| Performance Metric |
Ring Buffer (Array-Based) |
Linked List |
| Memory Layout |
Contiguous (High Cache Locality) |
Fragmented (Heap-based) |
| Allocation Style |
Static (Pre-allocated) |
Dynamic (Per-node overhead) |
| Access Time |
O(1) Push/Pop |
O(1) Push/Pop |
| Metadata Overhead |
Minimal (Two Indices) |
High (Pointers per node) |
In high-performance contexts, the cost of a cache miss often outweighs the cost of the actual computation. Since a ring buffer is an array, the CPU can pre-load the next items in the queue. A linked list forces the processor to wait for multiple memory fetches as it follows pointers across the heap.
How do CPU schedulers and video players use this structure?
Real-time systems require predictable performance, and ring buffers provide this by avoiding memory movement and heap management. They allow producers and consumers to interact at different speeds without constant reallocations or process blocking.
In CPU scheduling, the operating system manages process queues with zero allocation overhead. A ring buffer allows for a stable, high-speed queue of process IDs that the kernel can cycle through. Similarly, video buffering relies on this for smooth playback. Packets stream into the tail and the player reads from the head. This is a reliable way to manage a continuous flow of information while reusing the same memory block.
FAQ
What happens when the ring buffer is full?
Systems typically either block the producer from adding more data until space is cleared or overwrite the oldest data. Overwriting is common in real-time telemetry, while blocking is used in IO operations where data loss is not acceptable.
Is a ring buffer thread-safe?
By itself, it is not. However, a Single Producer, Single Consumer (SPSC) ring buffer can be implemented as a lock-free structure using atomic memory barriers, making it one of the fastest methods for inter-thread communication.
Can a ring buffer be resized dynamically?
While possible, resizing requires allocating a new array and copying all existing elements, which introduces the exact latency spikes that ring buffers are designed to avoid. I generally recommend pre-sizing the buffer based on the maximum expected burst of traffic.
